Rigorous on-site inspection and operational verification for a high-speed 23.8 MW power generation gearbox.

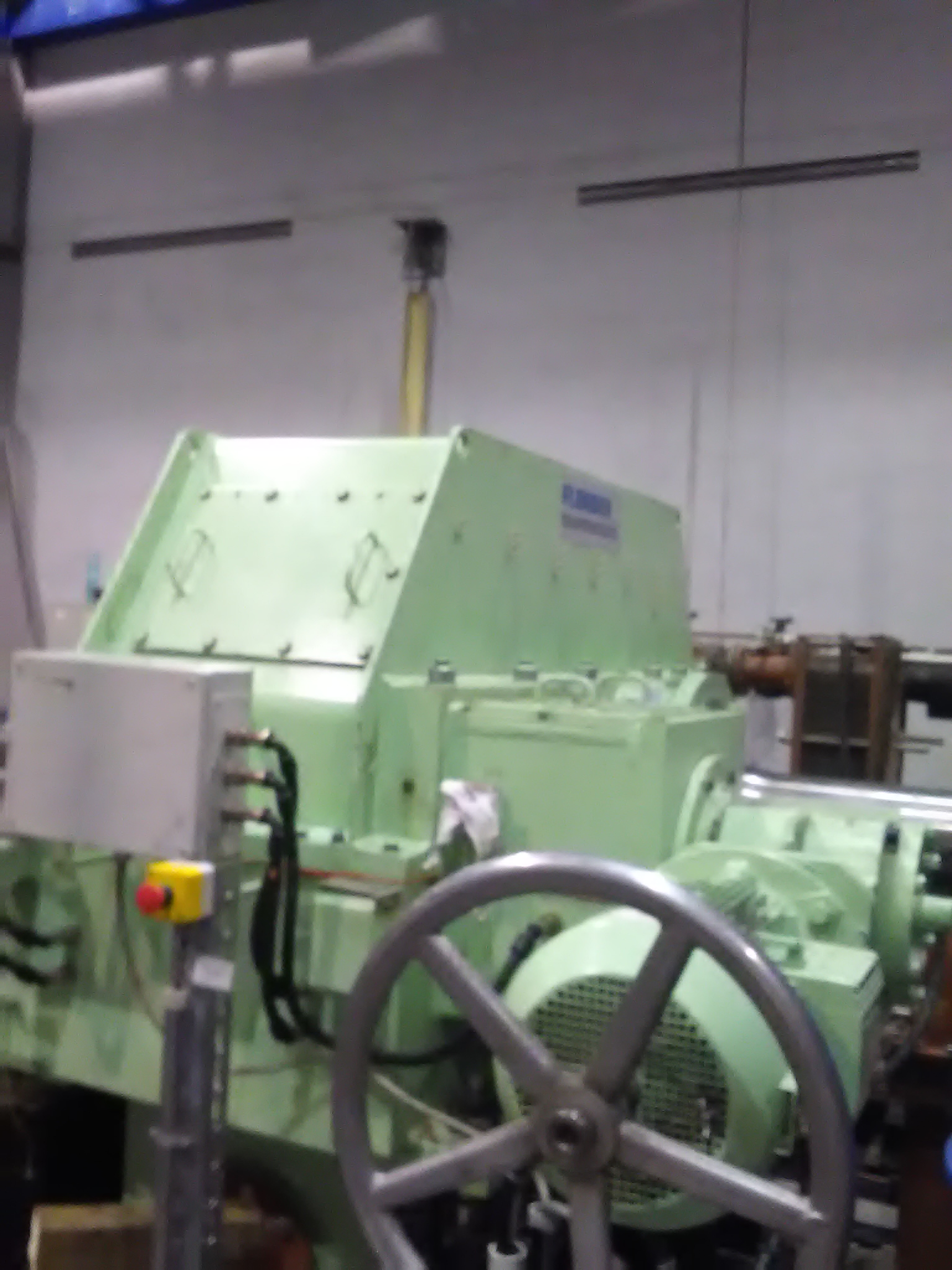

High-speed applications in power generation demand absolute mechanical integrity. We performed a rigorous on-site inspection of a Flender-Graffenstaden TX80/4C gearbox. This precision-engineered parallel shaft unit manages a power load of 23,800 kW while handling high input speeds of 6,797 rpm.

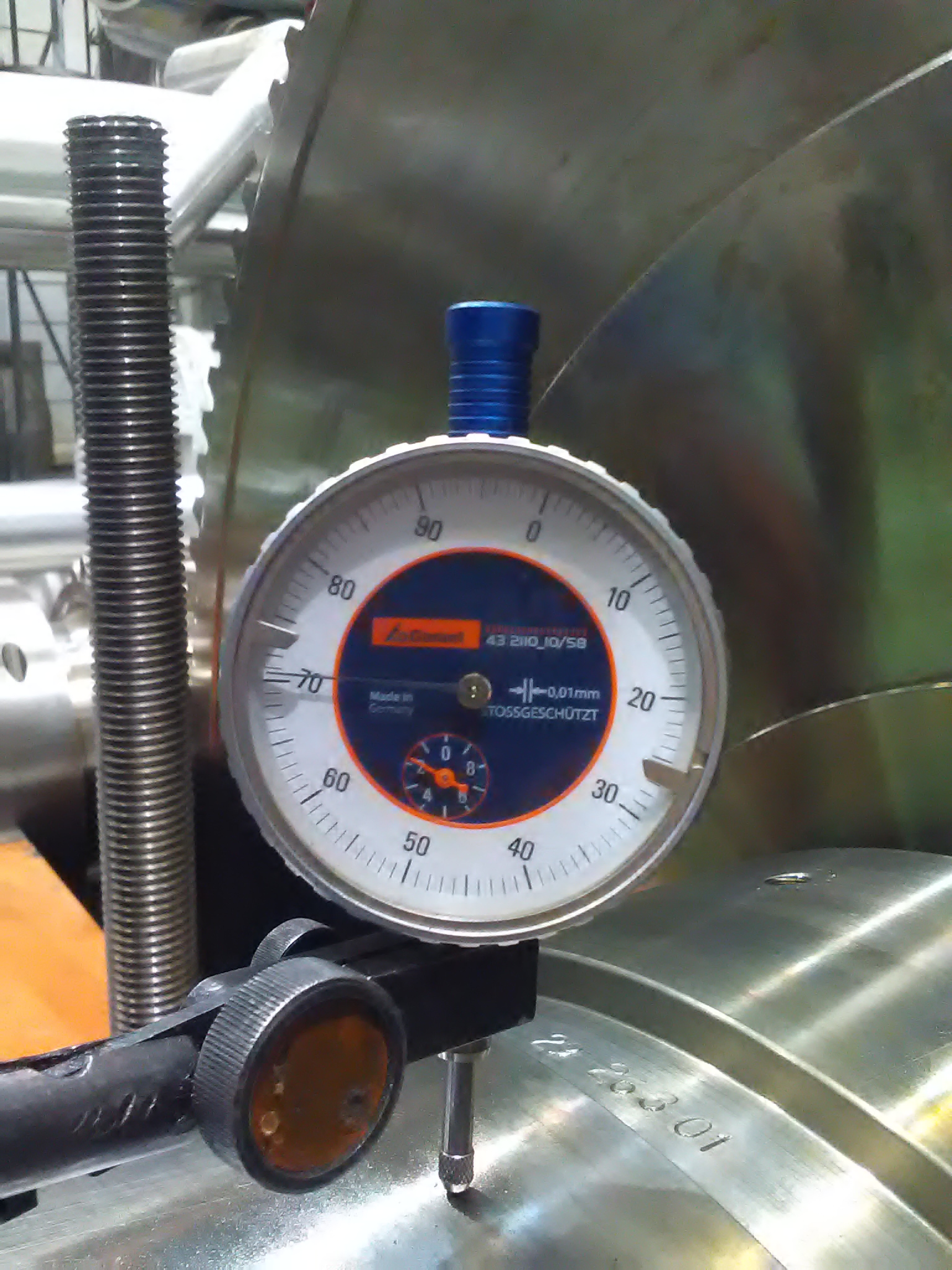

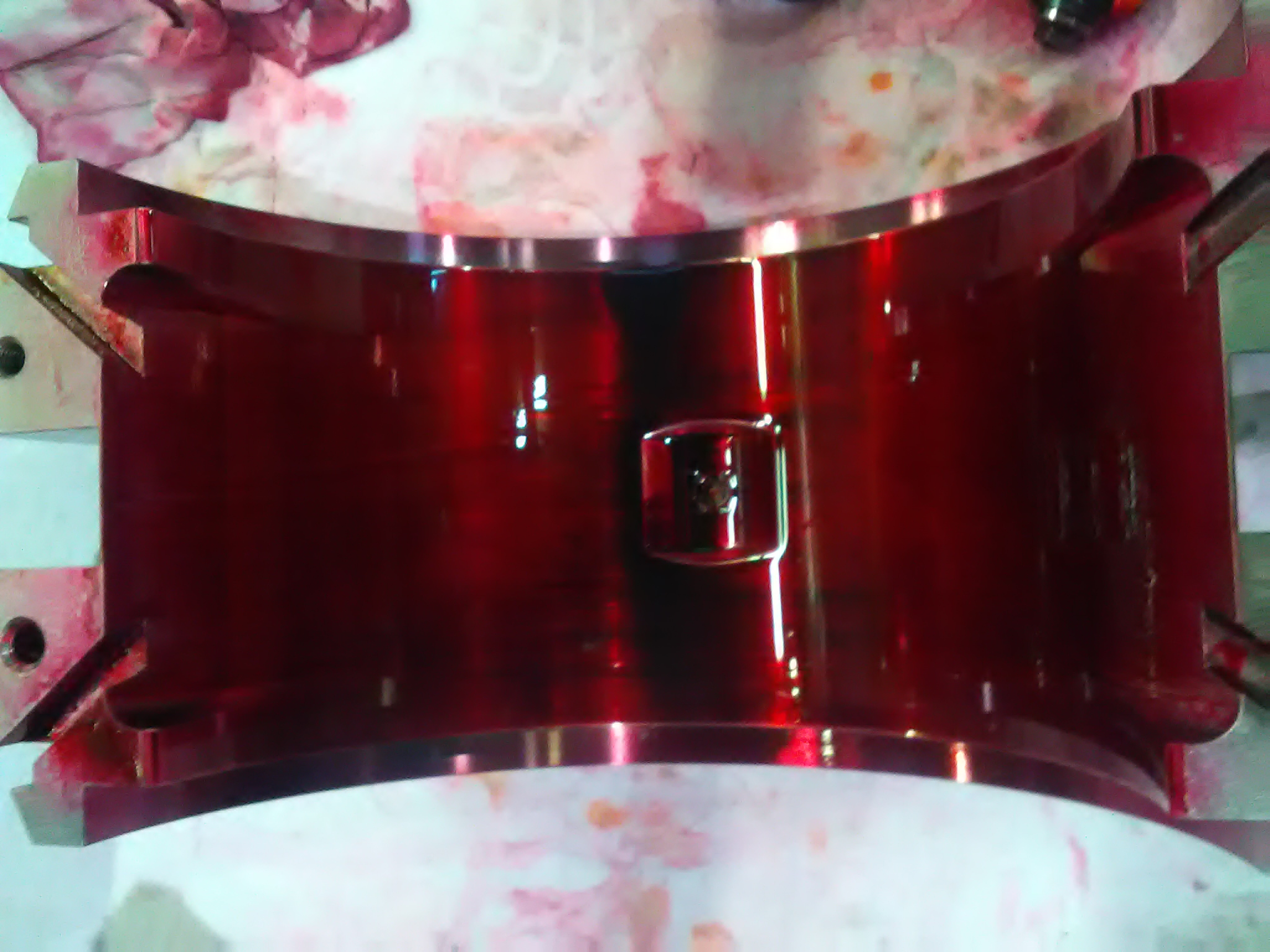

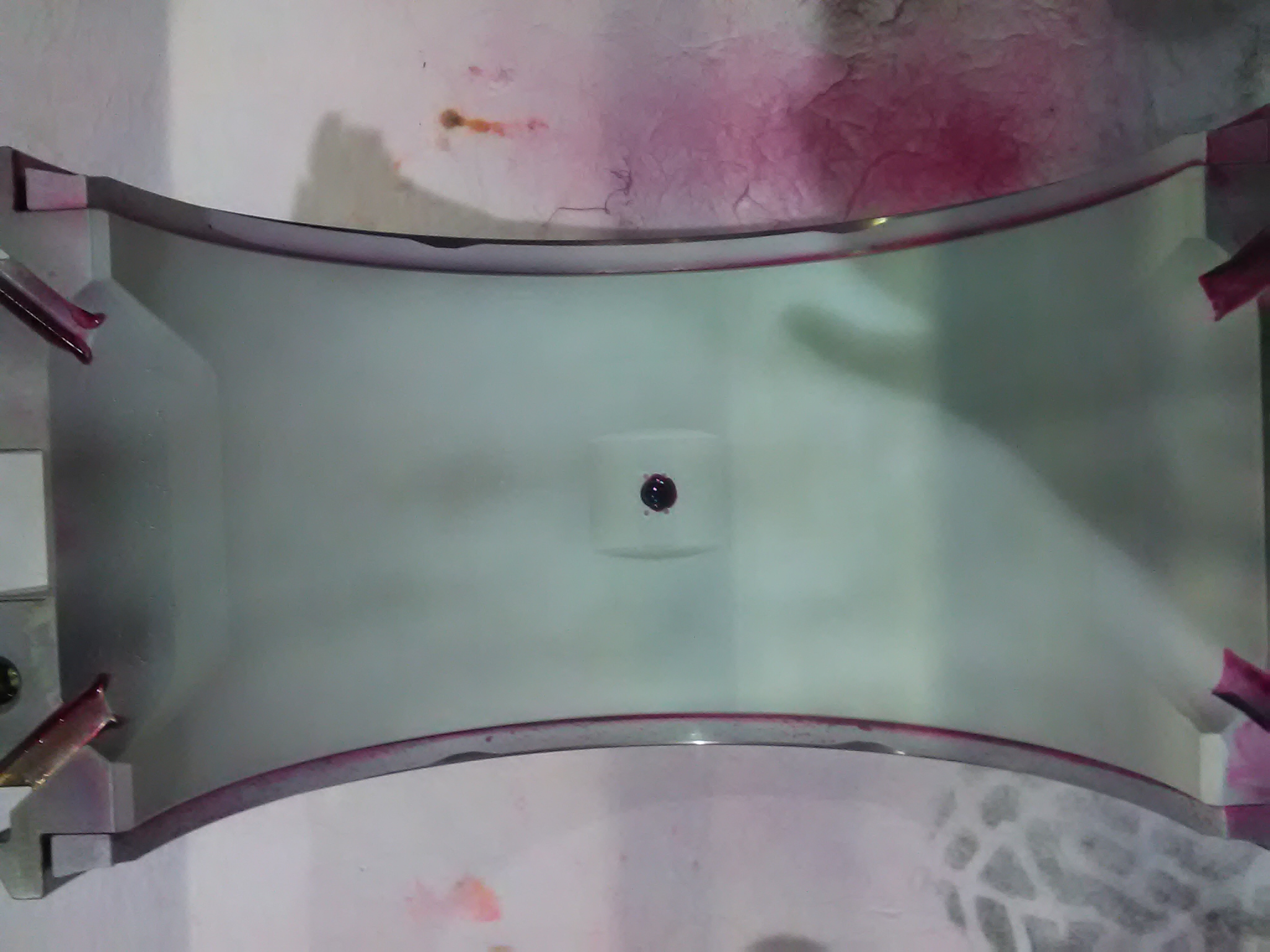

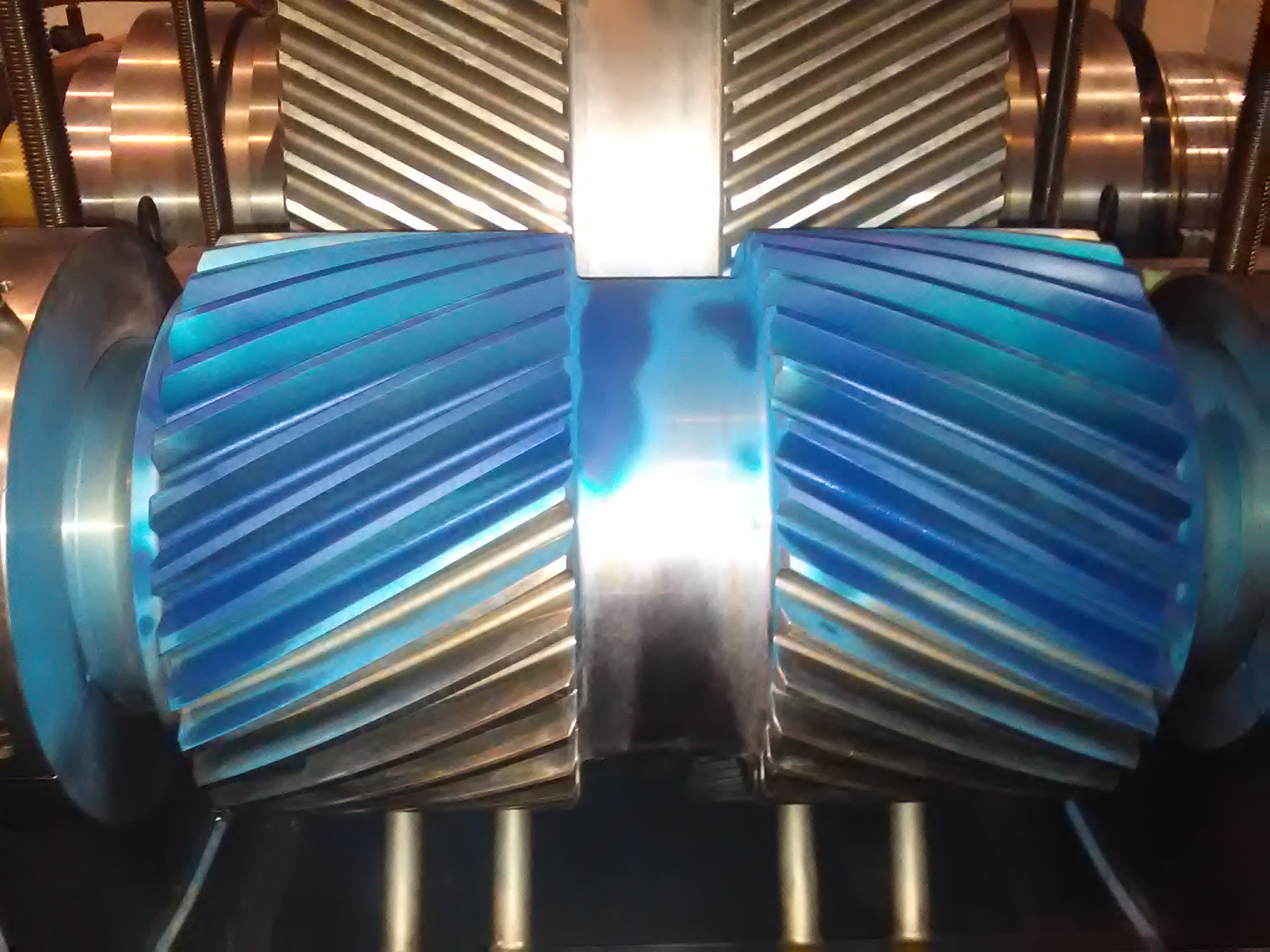

Our team conducted a detailed technical analysis to evaluate the gearbox's current state against strict operational standards. Following the inspection, we were pleased to certify the unit as fully operational without restrictions. As part of our comprehensive service, we advised the client that maintaining this status requires strict adherence to the manufacturer’s operating protocols, ensuring the equipment continues to deliver reliable energy output.
Gearbox make: Flender-Graffenstaden
Type: TX80/4C
Power in kW: 23,800
Input Speed: 6,797 rpm
Output Speed: 1,500 rpm
Ratio: 4.531:1
Architecture: Parallel shaft
Industry: Power generation
Scope of work: On-site inspection, operational verification
Type of repair: Inspection / Assessment
Year: 2018
Country: Czech Republic
