In-depth operational diagnostics and process data analysis for a 33 MW power generation unit.

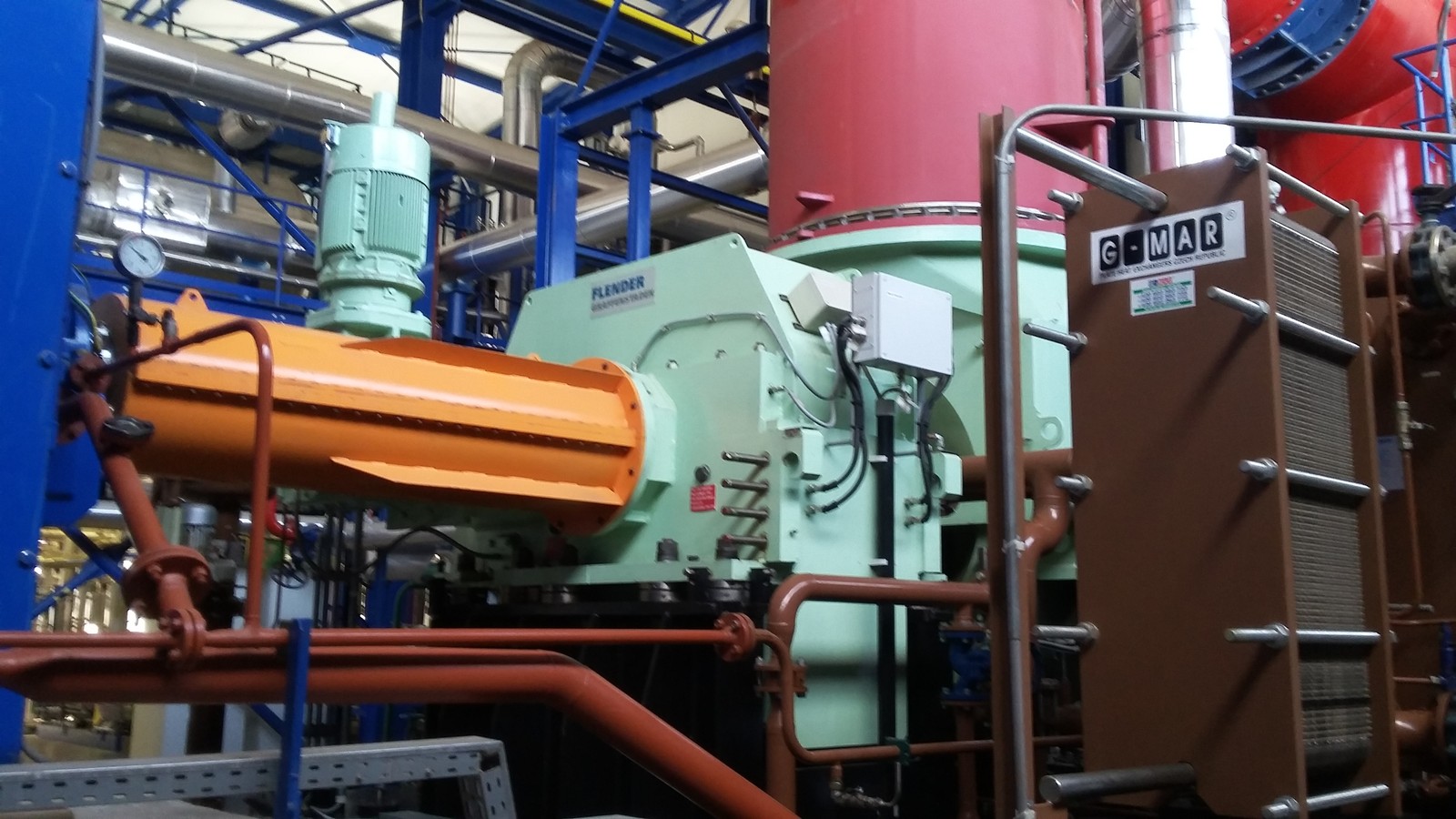

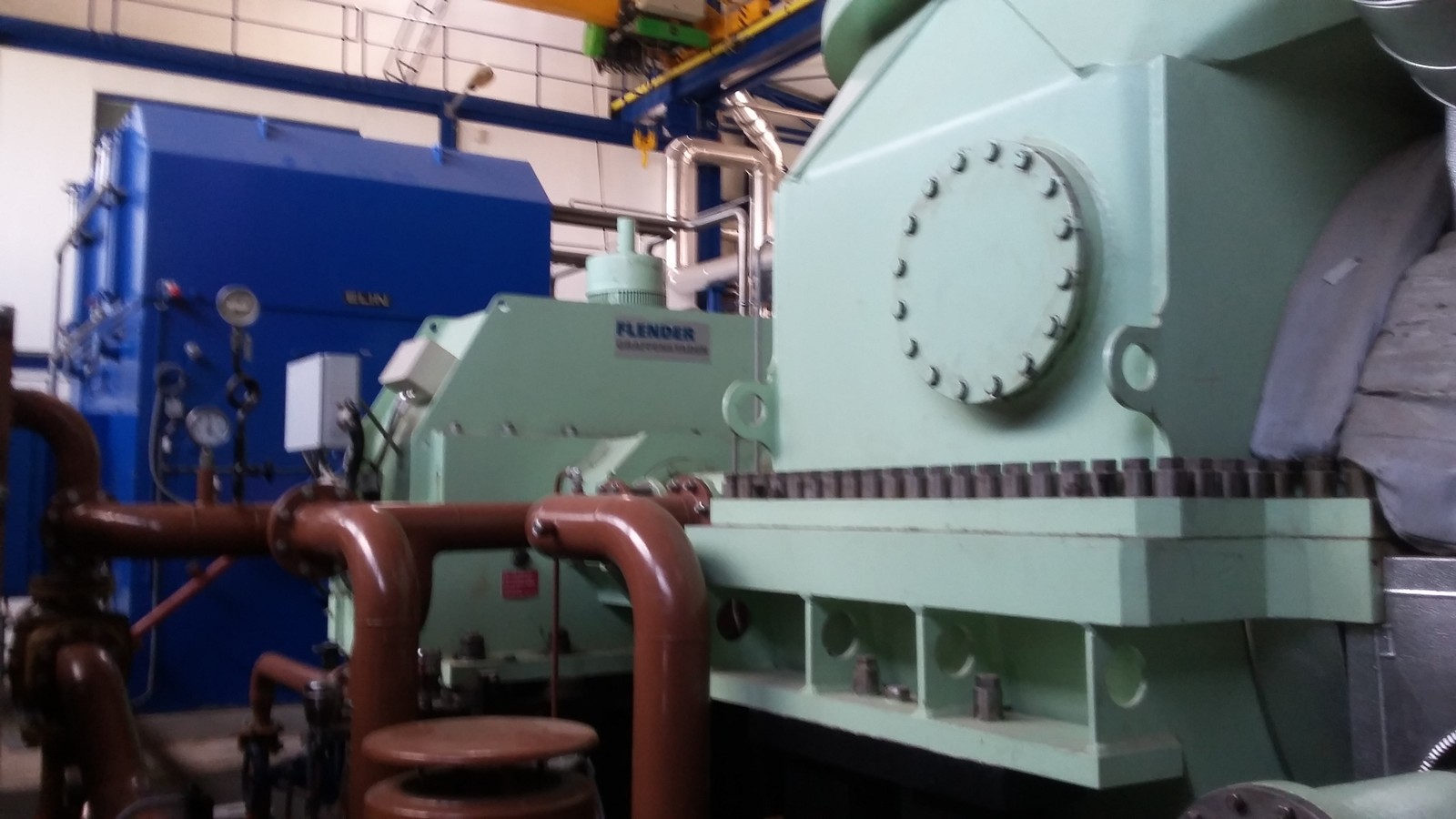

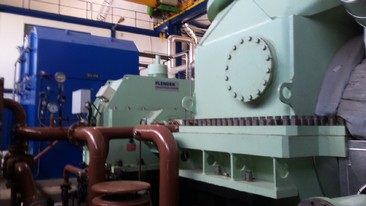

Ensuring the reliability of high-performance turbomachinery requires precise diagnostic capabilities. We were tasked with the analysis of a Flender-Graffenstaden TX71/3C gearbox, a critical component in a power generation drive train with a rated power of 33,201 kW.
Our expert team performed a comprehensive on-site inspection, which included capturing and measuring critical process data during operation. This dynamic assessment allowed us to evaluate the internal behavior of the parallel shaft unit under actual load conditions. Following a rigorous analysis of the gathered data, the gearbox was diagnosed and affirmed as in working order, giving the client full confidence in the continued safety and efficiency of their power plant.
Gearbox make: Flender-Graffenstaden
Type: TX71/3C
Power in kW: 33,201
Input Speed: 4,864 rpm
Output Speed: 1,500 rpm
Ratio: 3.243:1
Architecture: Parallel shaft
Industry: Power generation
Scope of work: On-site inspection, dynamic diagnostics
Type of repair: Inspection / Diagnostics
Year: 2016
Country: Slovakia
