Solving critical overheating issues on a 51 MW power generation unit through on-site diagnostics and lubrication system upgrade.

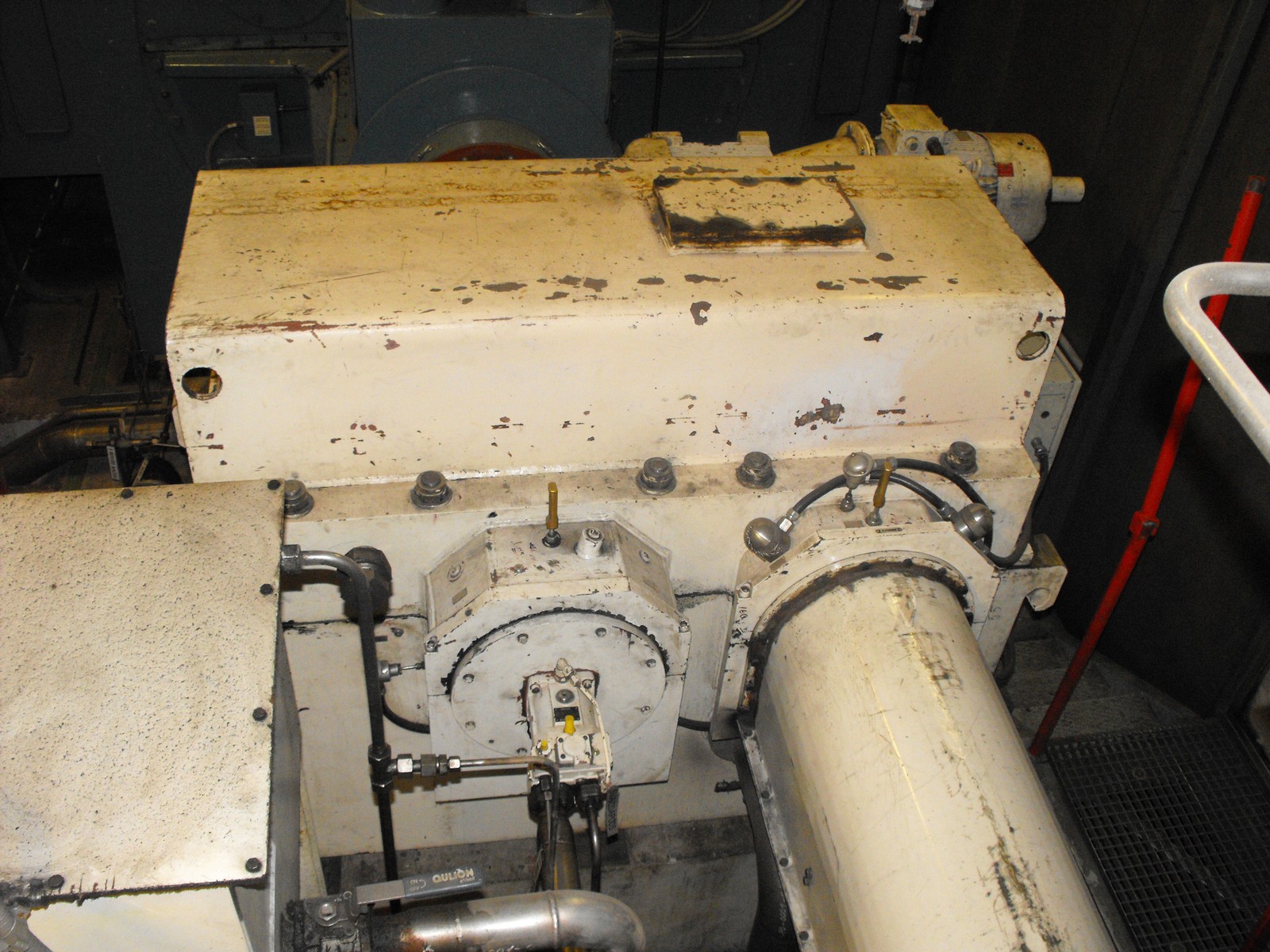

We successfully addressed critical operational challenges on a high-speed Flender-Graffenstaden TX71/2 gearbox. With a massive power rating of 51,000 kW, this parallel shaft unit is a key component in the power generation sector, where reliability is non-negotiable.

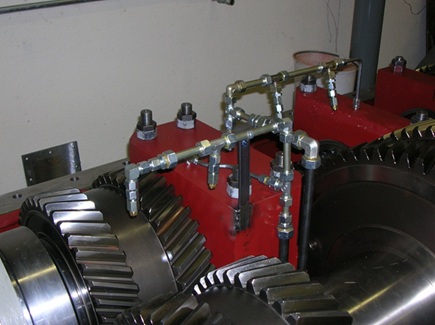

The unit was suffering from severe overheating, threatening production stability. Our team deployed for an on-site diagnostic and performed a deep root cause analysis to identify the thermal bottlenecks. The solution involved engineering and fitting an upgraded lubrication system tailored to the specific operating conditions. This intervention not only resolved the overheating but optimized the gearbox for sustained performance at its nominal 8,195 rpm input speed.
Gearbox make: Flender-Graffenstaden
Type: TX71/2
Power in kW: 51,000
Input Speed: 8,195 rpm
Output Speed: 3,000 rpm
Ratio: 2.732:1
Architecture: Parallel shaft
Industry: Power generation
Scope of work: On-site inspection, upgrade
Type of repair: Upgrade / Modification
Year: 2011
Country: Czech Republic
